How to Configure Fastly Edge Dictionaries in Adobe Commerce (From the Admin)

Introduction

Fastly Edge Dictionaries let you store key-value data directly at Fastly’s edge network and reference it from custom VCL snippets — without touching your Magento backend at all. Since lookups happen at the CDN level, they’re extremely fast and are commonly used for things like:

• Redirecting specific URL paths to a different backend (e.g., a WordPress blog)
• Country/locale-based routing
• Feature flags or maintenance toggles at the edge
• Large redirect maps (thousands of rows) without slowing down Magento

This guide walks through creating and managing Edge Dictionaries directly from the Adobe Commerce Admin.

---

Prerequisites

Before configuring Edge Dictionaries, make sure:

• Your environment is already configured to use the Fastly CDN (Fastly caching must be working with the default configuration first).
• You’re running the latest version of the Fastly CDN module for Magento 2.
• You have Admin credentials with access to Stores > Settings > Configuration.
• If you’re on Staging/Production (Cloud infrastructure), test changes on Staging first before pushing to Production.

---

Step 1: Navigate to the Fastly Configuration Section

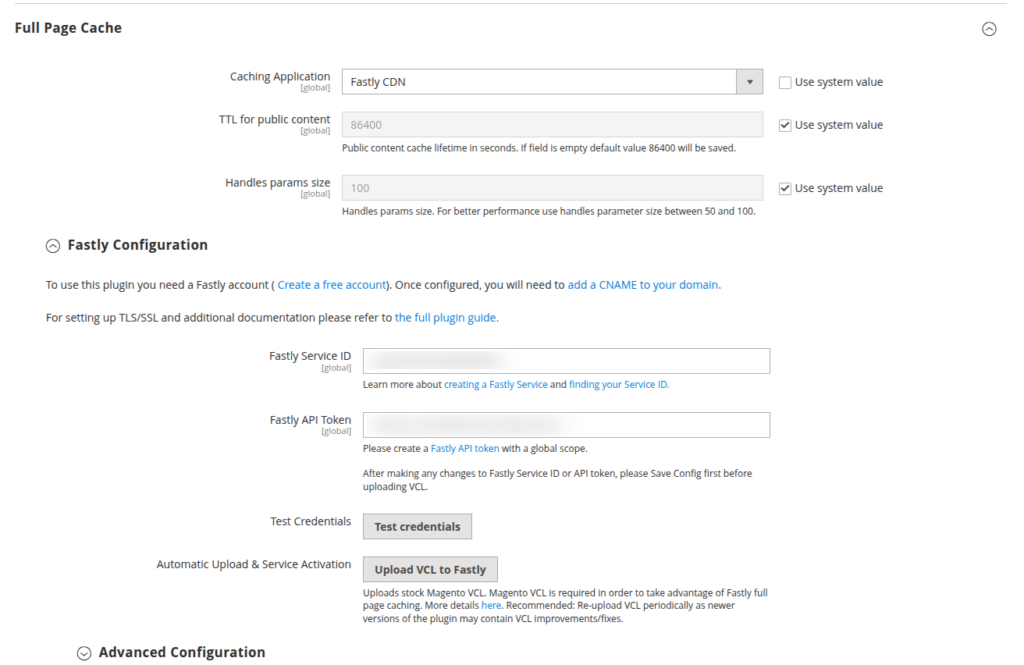

Log in to the Adobe Commerce Admin and go to:

Stores > Settings > Configuration > Advanced > System > Full Page Cache > Fastly Configuration

This is the central hub for all Fastly-related settings, including caching behavior, custom VCL snippets, Edge ACLs, and Edge Dictionaries.

---

Step 2: Open the Edge Dictionaries Section

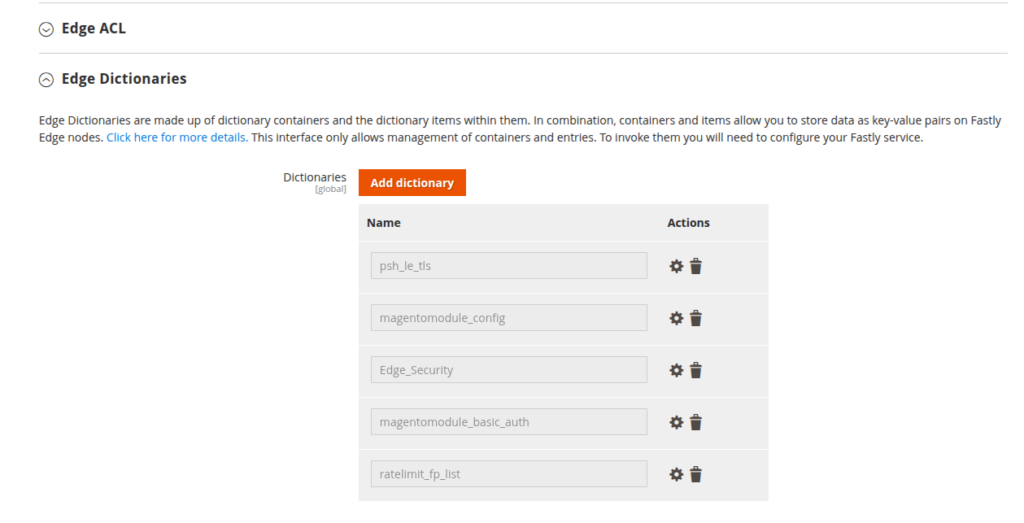

Within the Fastly Configuration page, expand the Edge Dictionaries section. Here you’ll see a list of any dictionaries that already exist, along with their Dictionary ID and Sync Mode.

From here you have two options:

• Add Dictionary — create a new dictionary manually, one entry at a time.
• Import — bulk-upload a large list of key-value pairs from a JSON file (ideal when you have hundreds or thousands of rows).

---

Step 3: Create a New Dictionary

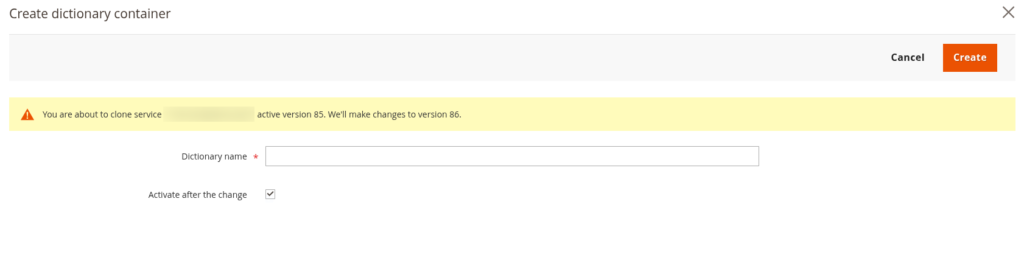

Click Add Dictionary. You’ll be asked to provide:

• Name — a unique identifier used to reference this dictionary in your custom VCL code (e.g., geo_country_redirects or wordpress_urls).
• Sync Mode — typically set to Manual, meaning changes are pushed to Fastly’s edge only when you explicitly save/upload.
• Write-only dictionary (optional) — if checked, values won’t be displayed back in the Admin UI once saved (useful for sensitive data).

Click Save Dictionary once you’ve named it. The dictionary itself is now created — but it’s still empty.

---

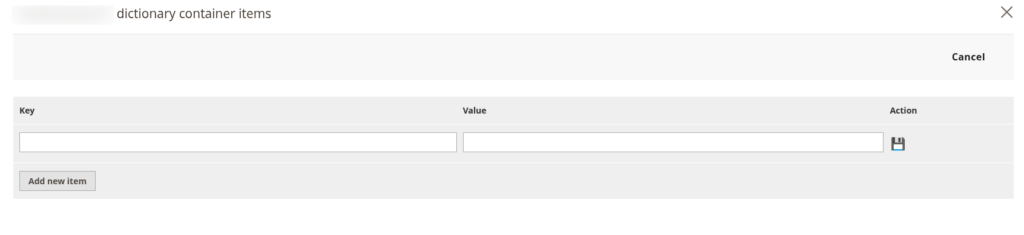

Step 4: Add Key-Value Items to the Dictionary

Open the dictionary you just created to add its contents. Each row is a simple key → value pair. For example, if you’re routing certain URL paths to different backends:

Key	Value
/de/	germany.example.com
/fr/	france.example.com
/blog/	wordpress-backend.example.com

Click + Add Item to add more rows, fill in the key and value, then click Save Config to persist the dictionary contents.

---

Step 5: Bulk Import (For Large Dictionaries)

If you need to add a large number of entries (hundreds or thousands of redirects, for example), manual entry isn’t practical. Instead:

1. Prepare a JSON file containing your key-value data.
2. Go to Fastly Configuration > Tools > Import.
3. Choose your JSON file and click Import.
4. Magento will show you a preview of the parsed structure before committing the data.

This is the recommended approach any time you’re populating a dictionary with more than a handful of rows.

---

Step 6: Reference the Dictionary in Custom VCL

Creating the dictionary alone doesn’t do anything — you need custom VCL code that actually looks up values from it. This is typically done in a Custom VCL Snippet (also under Fastly Configuration), using Fastly’s table.lookup() function to check the dictionary at request time. For example, a snippet might check if the incoming request path exists as a key in your dictionary, and if so, reroute the request to the corresponding backend value.

Custom VCL snippets and dictionaries work together:

• The dictionary stores your data (paths, flags, redirect targets).
• The VCL snippet contains the logic that reads from the dictionary and acts on it.

---

Step 7: Save, Upload, and Test

After configuring your dictionary and VCL snippet:

1. Click Save Config at the top of the Fastly Configuration page.
2. Click Upload VCL to Fastly to push your changes live to the edge.
3. Test on Staging first — verify the behavior (e.g., that a specific path now routes correctly) before promoting the change to Production.

---

Common Use Cases for Edge Dictionaries

• Multi-backend routing — send certain paths (like /blog/) to a separate CMS such as WordPress.
• Country/locale redirects — map country codes to specific store URLs.
• Large-scale redirect management — thousands of old-URL-to-new-URL mappings without adding load to Magento.
• Feature flags at the edge — toggle edge behavior without deploying code.

---

Conclusion

Fastly Edge Dictionaries give Adobe Commerce merchants a powerful way to manage routing and data lookups directly at the CDN layer — all configurable from the Admin, without writing custom Magento code. Combined with custom VCL snippets, they’re a key tool for advanced caching, routing, and personalization scenarios at scale.
